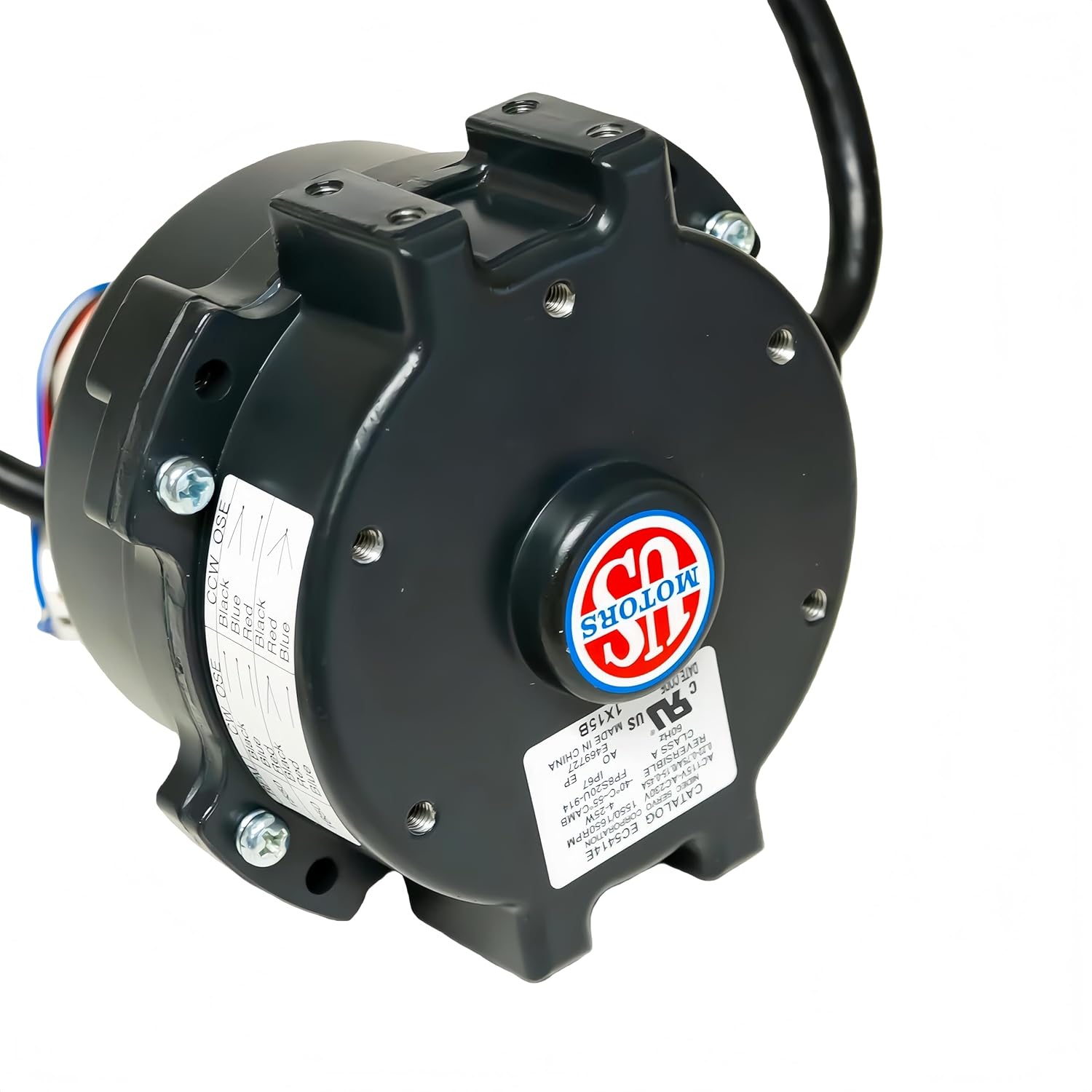

EC5414E Compatible with Nidec Rescue ECM Refrigeration Motor 4-25 Watt 115-230V 1550/1650 RPM Replacement EC-HE-0147 EC-HE-0170 EC-HE-0176 EC-HE-0182
Product details
| Management number | 215205573 | Release Date | 2026/04/12 | List Price | US$88.00 | Model Number | 215205573 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
part number EC5414, Rescue ECM Watt Motor, Refrigeration Evaporator and Condensing Applications Ultimate Truck Stock Motor Specifications: Horsepower: 4W, 6W, 9W, 12W, 14W, 16W, 25W, Speed: 1550/1650 RPM, Rated Voltages: 115V-230V, Temperature Rating: -40 C to 55 C (-40 F to 130 F), Amps: 0.22 to 0.75 at 115V, 0.15 to 0.45 at 230V, Rated Hertz: 50/60 H, Bearing: Ball, Enclosure: Totally Enclosed Air Over (TEAO), Rotation: Reversible Dimensions: Motor Diameter: 3.3 in., Case Length: 2.5 in., Shaft Height: 0.425 in., Shaft Diameter: 0.25 in. 20 Thread, Weight: 2.0 lbs. Features: One motor meets three standards: IP65, IP66 and IP67, Dust, Water and Splash Resistant, Wide range of motor strength covered (4 to 25 Watt), Efficiency up to 70%, Dual Voltage: No connection change required, Electronically Protected, Includes Plug, Speed Nut, Rubber Isolator and Spray Shield, Universal Mounting Includes Elco Front Mounting, Meets ATEX Directive 94/9/EC Industry Replacement Numbers: EC-HE-0147, EC-HE-0170, EC-HE-0176, EC-HE-0182 9207F2, 9208F2, 9211, 9212, 9213 00621, 00624, 00650, 00654, 00655, 00651, 00656, 00657, 00852 05443, 05444, 05620
- part number EC5414, Rescue ECM Watt Motor, Refrigeration Evaporator and Condensing Applications Ultimate Truck Stock Motor
- Specifications: Horsepower: 4W, 6W, 9W, 12W, 14W, 16W, 25W, Speed: 1550/1650 RPM, Rated Voltages: 115V-230V
- Dimensions: Motor Diameter: 3.3 in., Case Length: 2.5 in., Shaft Height: 0.425 in., Shaft Diameter: 0.25 in. 20 Thread, Weight: 2.0 lbs.
- Features: One motor meets three standards: IP65, IP66 and IP67, Dust, Water and Splash Resistant
- Industry Replacement Numbers: EC-HE-0147, EC-HE-0170, EC-HE-0176, EC-HE-0182 9207F2, 9208F2, 9211, 9212, 9213 00621, 00624, 00650, 00654, 00655, 00651, 00656, 00657, 00852 05443, 05444, 05620
| UPC | 772224877439 |
|---|---|
| Model | EC5414E EC-HE-0182 |
| Speed | 1650 RPM |
| Voltage | 230 Volts |
| Brand Name | Generic |
| Horsepower | 25 Watts |
| Model Name | Rescue ECM Refrigeration Motor |
| Manufacturer | Generic |
| Included Components | New: A brand-new, unused, unopened, undamaged item in its original packaging |
