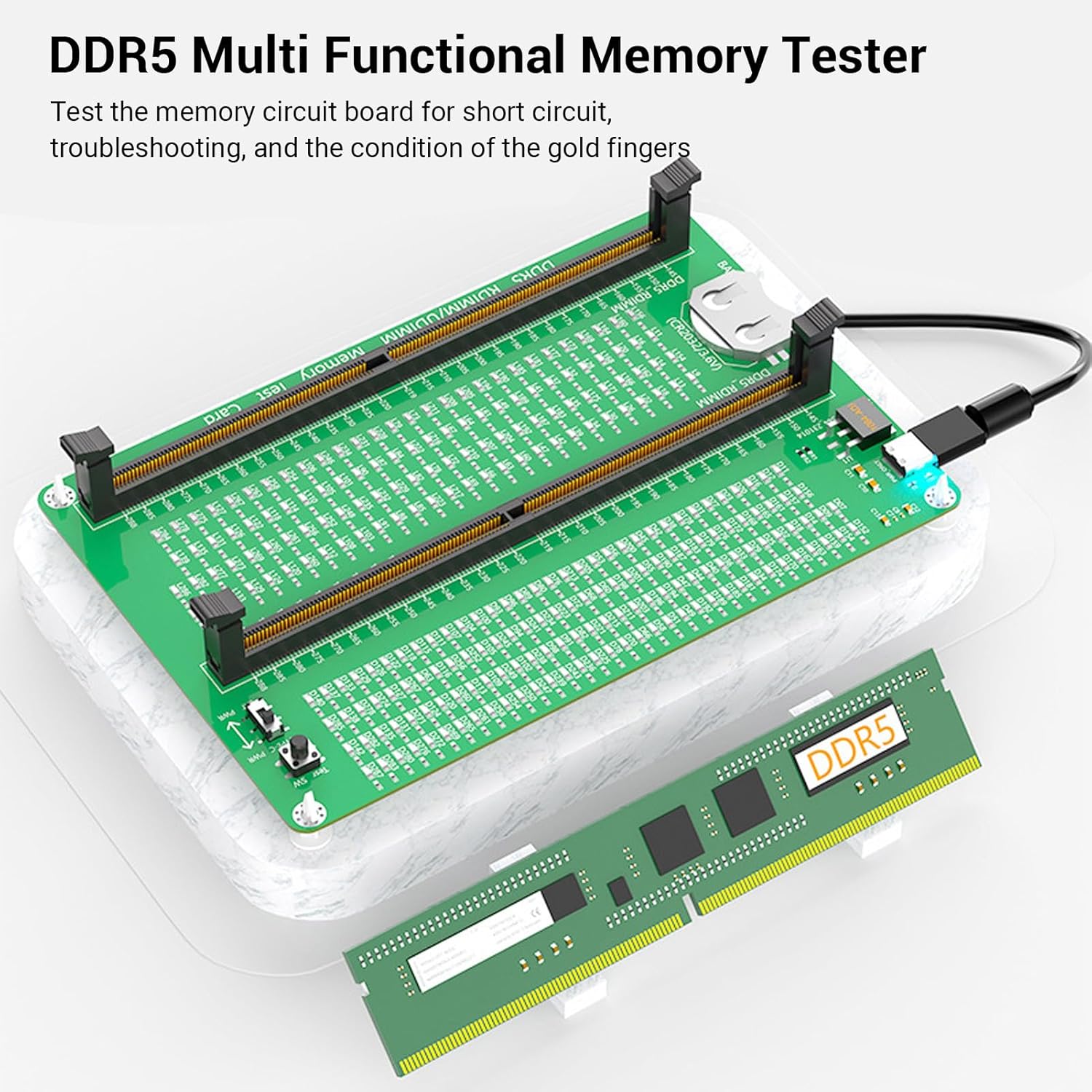

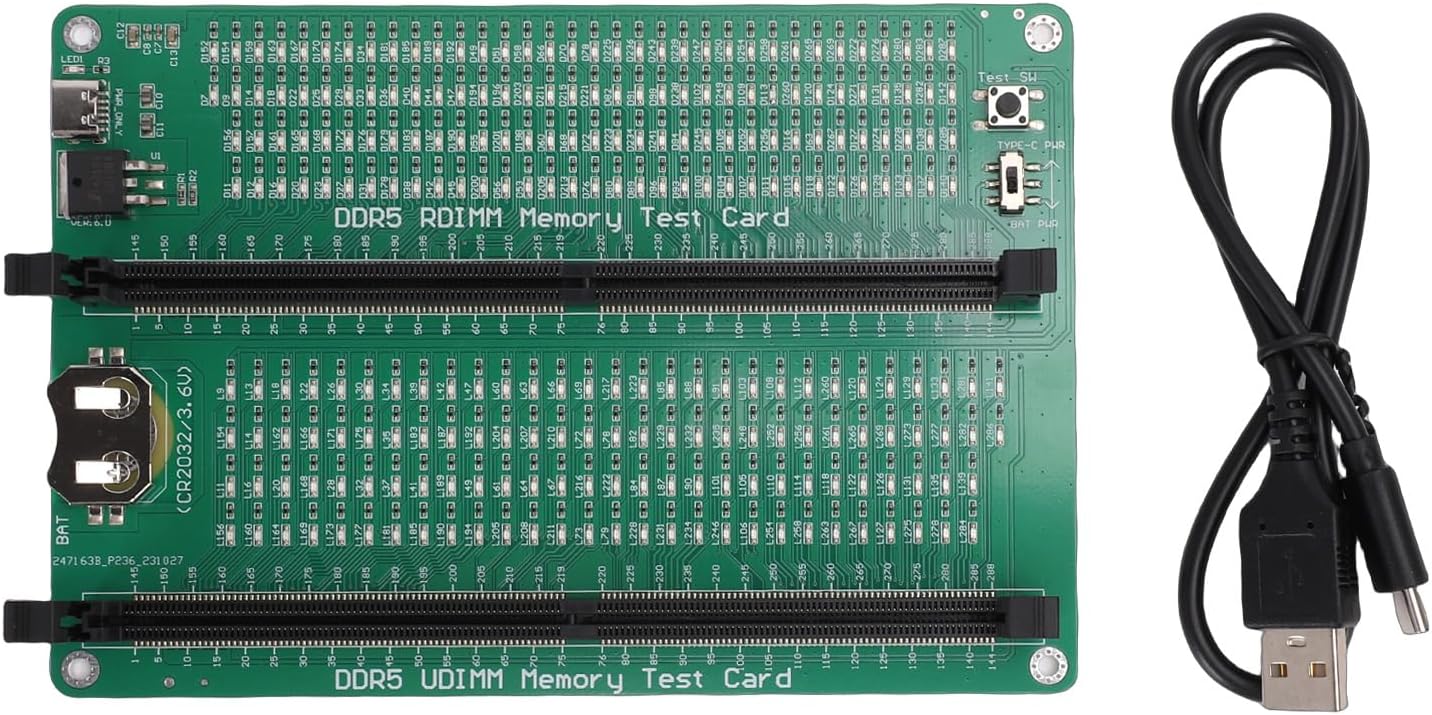

DDR5 Memory Tester, DDR5UDMM DDR5RDIMM Tester Card with LED Light, for Fixing Desktop and Server Computers
Product details
| Management number | 217026147 | Release Date | 2026/04/19 | List Price | US$10.99 | Model Number | 217026147 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Product Purpose and Use: This RAM memory tester card is designed to detect various faults caused by hardware open and short circuits within the memory, addressing issues such as poor graphics memory performance. It is compatible with DDR5 and server DDR5 RAM 4 type
- Dual Power Modes: This memory test card can be powered by battery (not included) or by plugging a standard TYPE C cable into a charging adapter. It supports simultaneous charging and discharging. During charging, the indicator light displays red, and turns green when fully charged
- LED Light Testing: When hardware faults occur in these data cable circuits, the brightness of the LED indicators will change. Insert the memory module to be tested into the tester slot. If all indicator illuminates with consistent brightness, it indicates that there are no open or short circuit faults in the data line circuits of the memory module. If the indicator flickers during testing, it suggests poor contact with the gold fingers. If the indicator does not light up, it indicates an open
- Testing Instructions: It checks for wear on the gold fingers, damaged resistors, and open circuits in the PCB circuitry. Identify faulty pins based on the numerical indications of the indicator lights, and then use a multimeter to determine the specific cause of the fault. After passing the hardware test of the memory module, consider issues related to poor graphics memory performance and use substitution methods or corresponding testing software to locate faulty graphics memory
- Wide Compatibility: Designed for desktop DDR5 UDIMM and server DDR5 RDIMM modules, this memory diagnostic analyzer card uses components for safe handling, making it suitable for hardware diagnostics and repairs
